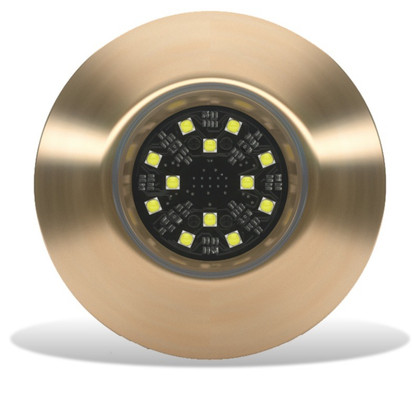

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC
Model: TIX404The TIX404 packs a powerful 5,100 fixture lumens into a compact, low profile interchangeable thru-hull, with an ultra-wide 110° beam angle.
Available in single color white.
TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
Specifications| AVAILABLE LED COLORS | SINGLE COLOR (WHITE) |
| LUMENS | 11,475 |
| VERIFIED FIXTURE LUMENS (WHITE) | 5,100 |
| NUMBER OF HIGH POWER LEDS | WHITE - 12 x 10W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110° |
| DRIVER | INTERNAL DRIVER |
| SUPPLY VOLTAGE | 10.5-31 V DC |
| MAX CURRENT DRAW | 4.0 A / 2.0 A |
| HOUSING TYPE | MARINE BRONZE BODY, BOROSILICATE GLASS LENS |
| USER CONTROL OPTIONS | ON/OFF SWITCH |
| WARRANTY | 3 YEARS |
What's in the Box:
- One (1) ORA TIX404 Light with Built-in Driver
