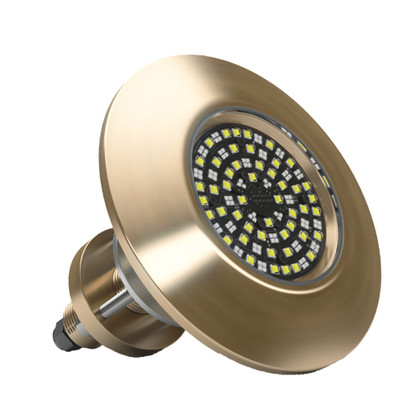

CAD DrawingCAD Drawing 2CAD Drawing 3SUPRA THX1604 Thru-Hull Light & Driver
Lumishore's THX1604 offers 20,000 fixture lumens and an ultra-wide 110° beam angle for the ultimate swimming pool effect. ‘2-lights-in-1’ (blue and white) in a single full-powered thru-hull fixture!
Switch between colors, fade colors, adjust brightness, and strobe at two speeds.
Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.
THX models feature a standard 1" fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side, and bottom mounting.
Specifications:
- Available Colors: Dual Color (Blue & White)
- Lumens: 45,000
- Fixture Lumens (White): 20,000
- Number & Type Of LED: White - 48 x 10W, Blue - 108 x 3W
- LED Power - HICOB Array: Yes
- Typical LED Life: 50,000+ Hours
- Warranty: 3 Years
- User Control Options: SUPRA i-Connect Hub & Switch Certified MFD Screen* EOS-LUX-SUPRA Display WiFi control from Smart phone or Connected Device (via MFD or local WiFi Network)*
* Requires SUPRA Bridge Module
Manufacturer : Lumishore
Manufacturer Part No : 010-04519-00
UPC : 847772004146
