CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Andros Courtesy/Accent
Red LED Light

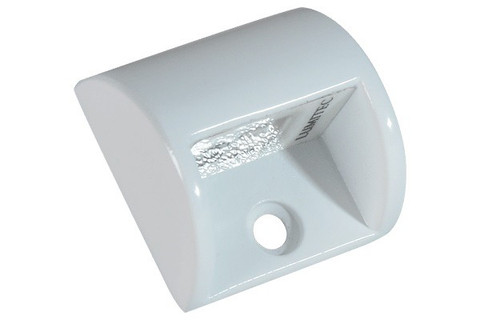

Model: 101048Andros accent/courtesy lights are compact, attractive and remarkably bright. Fully water sealed and IP67 compliant, Andros is perfect for interior or exterior installations. Available in four color output options with a hand polished or white powder coated 316 stainless steel finish.
Specifications| Lumens (White) | 45 |
| Voltage | 10-16vDC |
| 12v DC Amps | 45mA |
| 24v DC Amps | N/A |
| Rated Watts | 0.55 |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | 5/16"" |
| Height | 1.00in (2.54cm) |
| Width | 1.00in (2.54cm) |
| Depth | 0.50in (1.275cm) |
| Diameter | N/A |
What's in the Box:
- 101047 x 4
