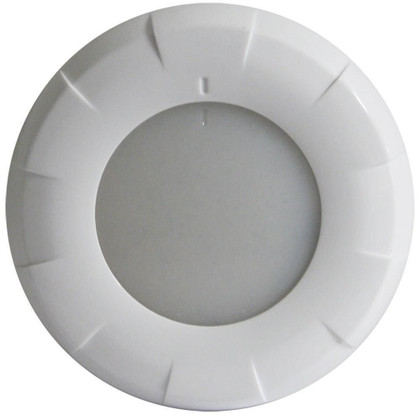

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Aurora Dome Light
White/Blue LED Light
Model: 101075Engineered to be a high-quality LED replacement for the ubiquitous dome light Aurora is bright with wide even light, has a clean look, an intuitive and reliable built-in switch, and a level of quality that sets it apart from the competitors. With Aurora we raised the bar, added multiple color output options and dimming, then to top it off we made it completely water sealed (IP67 compliant) for interior or exterior use.
Specifications| 180 | |
| Voltage | 10-30vDC |
| 12v DC Amps | 345mA |
| 24v DC Amps | 210mA |
| Rated Watts | 4 |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | 1/2 |
| Height | N/A |
| Width | N/A |
| Depth | 0.73in (1.84cm) |
| Diameter | 4.00in (10.16cm) |
