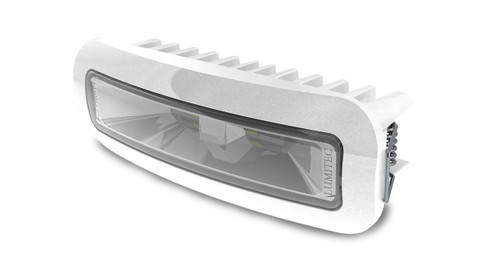

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Capri3 Flood Light RGBW Spectrum LED, White Housing
Model: 101720Now with 1,200 lumens, a smaller, more thermally efficient powder-coated die-cast aluminum housing with improved optical beam pattern and available in full-color RGBW Spectrun output. But the innovation doesn’t stop there; Capri3 has no exposed fasteners thanks to our innovative easy fit butterfly clip mounting system which greatly simplifies the installation process. Capri3 is IP67 compliant and PLI enabled (Poco compatible) on most models.
The all-new Capri3 spreader light series are smaller and lighter than the previous line of Capri lights, yet they output 20% more light (1,200 lumens) while drawing less power, and have a more optically efficient light beam pattern for a consistent even light spread.
An all-new feature to the Capri line is full-color RGBW Spectrum output.
Capri3 has no exposed fasteners due to an all-new innovative butterfly clip easy fit mounting system. This convenient mounting system uses a spring clip to firmly hold the light in place and requires no screws - giving the exterior of the light a clean flush look on your hardtop.
Want to upgrade your current Capri lights to the all-new Capri3? No worries, the Capri3 has a retro fit kit available which fits perfectly into the recess created by the previous line of Capri lights. This too does not require screws to secure but instead is also held in place by the same spring clip mounting system of the Capri3 lights fixture, to provide an equally seamless clean look on your hardtop.
The Capri3 Spreader lights are PLI compatible, meaning the internal ""Power Line Instruction"" technology built-in to the lights makes it compatible with our award winning Poco Digital Lighting Control system. This will allow for advanced lighting control when paired to a Poco module for precise color selection on multi-colored lights, dimming and light scene creation - all via a compatible MFD or connected smart device through the Lumitec Poco app.
Specifications| Voltage | 10-30vDC |
| Color output | RGBW Sectrum |
| Current draw @ 12vDC | 1A |
| CCT | 5000 |
| CRI | 70+ |
| Beam pattern | Flood |
| PLI | Yes |
| TTP | Yes |
| IP rated | IP67 |
| Housing | White |
