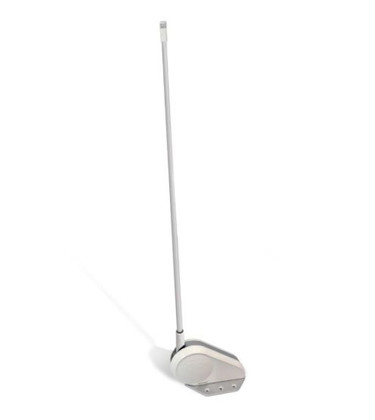

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Contour 39in Anchor Light, 12/24VDC White Shaft With Angler Motorized Mount
Model: 101918The design says it all, unobtrusive, durable, reliable, with striking good looks. The Contour Anchor Light has the slimmest profile in the industry, a retractable locking base with a small footprint, a simple 2-wire hookup, and is constructed from durable composite plastic to reduce weight. Available in 12" shaft or 1m (39"") shaft heights and U.S. Coast Guard approved for two nautical miles. Shaft length does not include the motorized base height.
Specifications| Color Output | White |
| Finish / Housing | 39""-White with Motorized Base |
| Voltage | 10-30 vDC |
| 12v DC Amps | 80mA |
| 24v DC Amps | 45mA |
| Related Watts | 0.9W |
| Op. Temp F/C | -31/35 to + 131/55 |
| Diameter | 2.5 in (6.35 cm) |
| Height | 39 in (99.6 cm) - 1M |
| IP Rating | 67 |
| PLI Enabled | No |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| CE Certified | Yes |
| UL Certified | No |
| USCG Rated | 2 NM |
