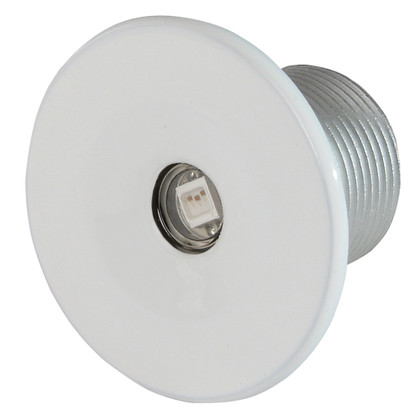

CAD DrawingCAD Drawing 2CAD Drawing 3Echo Courtesy Light - White Housing - Red Light
Small, attractive and discreet, Echo lights offer more light output than many 'full size' overhead lights. Measuring about 1" in diameter or less Echo is clean, almost flush, and easy to install. Fully water sealed and IP67 compliant Echo is perfect for interior or exterior installations.
Features:
- Lumens: N/A
- Voltage: 10-16V DC
- 12V DC Amps: 45mA
- 24V DC Amps: N/A
- Rated Watts: 0.55
- CCT: 5000
- CRI: 70+
- Op. Temp F/C: -31°F/35°C to + 131°F/55°C
- Timed Toggled Protocol (TTP): No
- Third Party Dimmer Compatibility (3PD): Yes
- Color Match Commitment (CM): Yes
- Mounting Hole Diameter: 11/16"
- Length: N/A
- Width: N/A
- Depth: 0.81" (2.06cm)
- Diameter: 1.24" (3.15cm)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product : LUMITEC ECHO COURTESY LIGHT WHITE HOUSING RED LIGHT
Manufacturer : Lumitec
Manufacturer Part No : 112225
Product : LUMITEC ECHO COURTESY LIGHT WHITE HOUSING RED LIGHT
