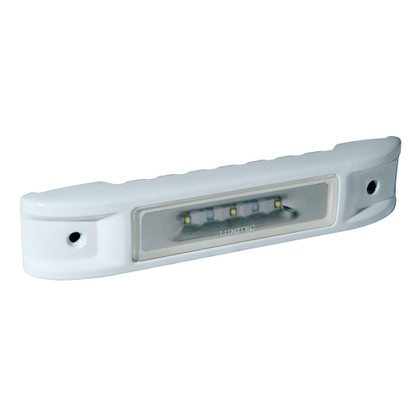

CAD DrawingCAD Drawing 2CAD Drawing 3Ibiza LED Engine Room Light - Non-Dimming White - White Finish
As beautiful as it is brilliant, you may be surprised that Ibiza is tough enough for an engine room. But it is. And it’s just as bright, reliable, and easy to install as it’s sibling, the wildly popular Nevis. Delivering 1,000 integrating-sphere-measured lumens. Ibiza is IP67 compliant and completely sealed. And like Nevis, Ibiza’s carefully engineered optical system delivers a nearly perfect 180-degree beam pattern to illuminate even the farthest, darkest corners.
Specifications:
- Lumens (White): 1000
- Voltage: 10-30V DC
- 12V DC Amps: 1.3A
- 24V DC Amps: 600mA
- Rated Watts: 16
- CCT: 5000
- CRI: 70+
- Op. Temp F/C :-31/35 to + 131/55 F
- Timed Toggled Protocol (TTP): No
- Third Party Dimmer Compatibility (3PD): Yes
- Color Match Commitment (CM): Yes
- Mounting Hole Diameter: N/A
- Length: 2in (5.08cm)
- Width: 9in (22.86)
- Depth: 1in (2.54cm)
- Diameter: N/A
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lumitec
Manufacturer Part No : 101520
UPC : 089300015204
