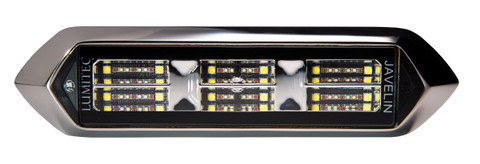

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Javelin 600X RGBW Spectrum LED Underwater Light
Model: 101705- Full-Color RGBW Spectrum Output
- 6,000+ Lumens Output
- Plated Naval Bronze Housing
- No External Controllers Required
- Operate From a Standard Power Switch (TTP)
- Poco System Compatible (PLI enabled)
Style and performance unite to create the all-new Javelin Underwater Light Series from Lumitec. Designed for high performance boats the Javelin Underwater Light boasts a highly polished housing and a contemporary stylish rectangular design. Leveraging the same ""smart light"" technology found in our market-leading SeaBlazeX2 series - Javelin offers the same high performance, full-color RGBW output, simple surface mount installation and the ease of operation only found in Lumitec products. Ideal for fresh water boats of all sizes but durable enough for saltwater applications.
Javelin retains the legendary bronze construction of the marketing-leading SeaBlaze Series but with the addition of our proprietary plating process which delivers a brilliant high luster polished finish for the best of both worlds.
Contemporary design with a highly polished housing, the rock solid reliability and unsurpassed performance of the market-leading SeaBlaze underwater light series, Javelin is the perfect combination of style and performance.
Javelin is designed with our Thermal Cutback Technology to ensure the lights do not overheat and cause damage the light. This means that if you occasionally run the lights while your boat is out of the water will not damage the light.
The beam pattern of the Javelin underwater light series has been carefully designed and optimized for optical efficiency, thus creating a low, broad flood beam pattern that maximizes coverage on the horizontal axis and minimizes waste on the vertical axis. This means the light stays concentrated just below the water surface with reduced light spill above the waterline or light loss into the depths.
The Javelin underwater light is PLI compatible, meaning the internal ""Power Line Instruction"" technology built-in to the lights makes it compatible with our award winning Poco Digital Lighting Control system. This will allow for advanced lighting control when paired to a Poco module for precise color selection, dimming and light scene creation - all via a compatible MFD or connected smart device through the Lumitec Poco app.
Specifications| Color output | RGBW Spectrum |
| Lumens | 6,000+ TRUE measured lumens |
| Voltage | 10-30vvDC |
| Current draw | 5A@ 12vDC |
| CCT | 6500 |
| CRI | 70+ |
| Dimensions | 6in W x 2 in H x 0.5 in D |
| Beam Pattern | Flood |
