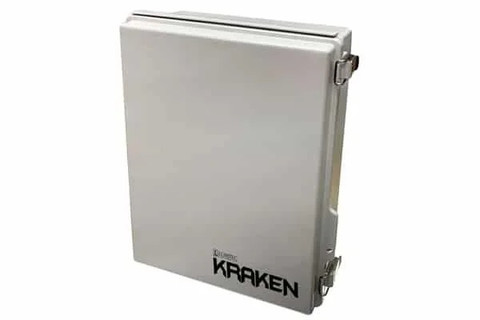

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Kraken Secondary Box
Model: 101680- Connect up to a Max of 6 Kraken Underwater Lights.
- Power supply included (rated to 480 watts).
- Poco Control Module NOT Included.
- Includes all bus connectors and fuses.
- Weatherproof enclosure.
- Not compatible for above water lighting control.
Expand your Kraken system by adding additional Kraken underwater lights via a secondary box. Connect up to a max of 8 underwater lights to each secondary box (not compatible with above water lighting). Power supply is rated up to 480w and all connectors and fuses are included in the durable weatherproof enclosure.
Note: Nautilus Piling Light and Scallop Pathway Light control is not compatible with the secondary box. These lights need to be connected to a Kraken Command Box which includes the Poco module.
Specifications| CE Certified | Yes |
| Color Match Commitment (CM) | No |
| Color Output | NA |
| Dimension HxDxW | 5.25in x 5.4 in x 11 in |
| Voltage | 110-240vAc |
| IP Rating | 67 |
| Op. Temp F/C | F/C-31/35 to + 131/55 |
| Third Party Dimmer Compatibility (3PD) | No |
| Timed Toggled Protocol (TTP) | No |
| UL Certified | No |
