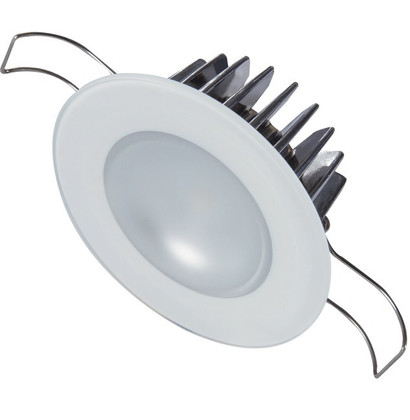

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Mirage Down Light Glass Finish Warm White LEDs
Model: 113199Lumitec’s Mirage LED down lights remain the best-performing down light in the category. Delivering incredible output and a profile that is among the slimmest in the industry, Mirage beat comparable 20W halogens by up to 300% in recent field studies. Completely sealed and IP67 rated, Mirage LED down lights are perfectly suited for a variety of indoor or outdoor overhead lighting needs. Output options include architectural-grade High CRI warm white, white/blue/red multi-color, or our new full-color Spectrum RGBW; offering nearly infinite output color possibilities.
Specifications| Lumens | 300 |
| Voltage | 10-30vDC |
| Power consumption | 480mA @ 12vDC |
| Rated watts | 6 |
| CCT | 3000 |
| CRI | 90+ |
| Operating temperature | -31/35 to + 131/55 F/C |
| Timed toggeled protocol | Yes |
| Third party dimmer compatibility | Yes |
| Color match commitment | Yes |
| Mounting Hole | 2"" |
| Depth | 1"" |
| Diameter | 2.5"" |
