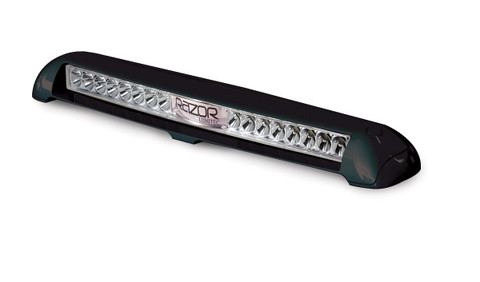

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Razor Light Bar Spot Light, Black Housing
Model: 101589- Die-Cast Aluminum Housing
- Sleek Low Profile Design
- Advanced Thermal Management
Sleek. Streamlined. Powerful. Introducing Razor - The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs — typically with only minor modification to production tooling. When mounted facing forward, Razor’s long-throw and high position are invaluable for spotting markers and obstructions. When positioned downward and aft, Razor floods cockpits, gunIn addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Available with two beam patterns (spot or flood) ensures the light goes where you need it most.wales and surrounding areas with more than 10,000 night-piercing lumens.
In addition to clean lines and a low profile, following Lumitec’s thermally-vetted reference designs allows OEMs to avoid the overheating and subsequent damage to hardtops that can be caused by enclosing other manufacturer’s light bars in a ‘pod’. Razor is also available in a surface-mount configuration, which mounts directly to un-modified hardtop surfaces and allows for an equally clean look and similar thermal performance. Two beam patterns ensure the light goes where you need it.
Specifications| COLOR OUTPUT | White Dimming |
| LUMENS | 10,000 |
| VOLTAGE | 10-30vDC |
| 12VDC Amps | 9A |
| 24VDC Amps | 4.2A |
| Rated Watts | 108W |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 |
| Timed Toggled Protocol (TTP | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | N/A |
| Height | 1.5in (3.81 cm) |
| Width | 18in (45.72cm) |
| Depth | 3.5in (8.89 cm) |
| Diameter | N/A |
| Housing | Black |
| PLI Enabled | Yes |
What's in the Box:
- Razor Spot Light
- Surface Mount
