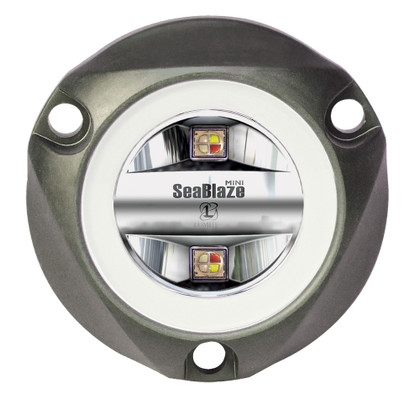

CAD DrawingCAD Drawing 2CAD Drawing 3SeaBlaze Mini Spectrum LED Underwater Light - PLI-Enabled
Packing all the features of its big brother the SeaBlazeX2 in a powerful little package, the SeaBlaze Mini Spectrum is perfect for smaller trailer boats and skiffs. 870 lumens, full-color RGBW, PLI-enabled, meaning it is compatible with Lumitec's award-winning Poco system and surface mountable with no external drivers and nearly infinite output colors.
Specifications:
- Color Output: RGBW spectrum
- Finish / Housing: Anodized aluminum
- Lumens: 670
- Voltage: 10-30 vDC
- 12v DC Amps: 880mA
- 24v DC Amps: 450mA
- Related Watts: 10.5
- Number of Channels: N/A
- Max Amp/ch: N/A
- Correlated Corrected Temperature (CCT): 6500
- Color Rendering Index (CRI): 70+
- Op. Temp F/C: -31/35 to + 131/55
- Diameter: 2.98in (7.57 cm)
- Height: N/A
- Width: N/A
- Depth: 0.63in (1.6 cm)
- Mounting Hole: 1/2"
- IP Rating: 68
- PLI Enabled: Yes
- Timed Toggled Protocol (TTP): Yes
- Third-Party Dimmer Compatibility (3PD): No
- Color Match Commitment (CM): No
- CE Certified: Yes
- UL Certified: No
- USCG Rated: N/A
Manufacturer : Lumitec
Manufacturer Part No : 101832
UPC : 893001002797
