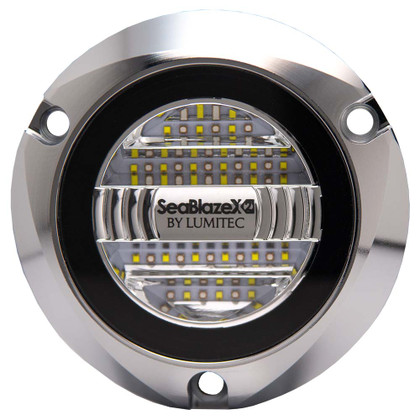

CAD DrawingCAD Drawing 2CAD Drawing 3SeablazeX2 Underwater Light Dual Color White Blue Polished Housing
As competitors have struggled to catch up to the performance and value of our phenomenally successful SeaBlazeX, Lumitec has pushed ever farther ahead. Introducing SeaBlazeX2. SeaBlazeX2 delivers the exceptional performance, quality, and value of the industry-leading SeaBlazeX, with 60% greater output. SeaBlazeX2 delivers more than 6,000 integrating-sphere-measured lumens, surface mount, no external drivers, and a pedigree of reliability recognized the world over. The bar has once again been raised.
Features:
- Completely water sealed and IP68 compliant
- Easy Installation: Surface mount with small 1/2" through-hull hole and simple 3-wire hook up
- No external controller boxes required
- Constructed of marine grade bronze and heat-tempered glass
- Over 2,000+ hours of rigorous ASTMB-117 Salt Spray Chamber testing
- Proudly designed and manufactured in the USA
- 3-year warranty on all Lumitec products
Specifications:
- Lumens (White): 6000
- Voltage: 10-30vDC
- 12v DC Amps: 5A
- 24v DC Amps: 2.5A
- Rated Watts: 60
- CCT: 6500
- CRI: 70+
- Op. Temp F/C: -31/35 to + 131/55
- Timed Toggled Protocol (TTP): Yes
- Third Party Dimmer Compatibility (3PD): No
- Color Match Commitment (CM): No
- Finish/Housing: Polished
- Depth: 0.85 in (2.15 cm)
- Diameter: 3.94 in (8.86 cm)
Manufacturer : Lumitec
Manufacturer Part No : 101592
UPC : 089300015921
