CAD DrawingCAD Drawing 2CAD Drawing 3Double Locking Stowable Pedestal Mount

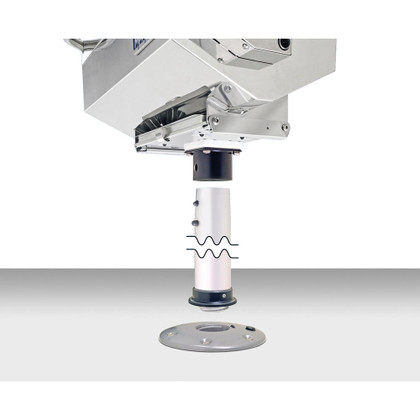

Magma’s 28” locking pedestal mount for rectangular grills and single mount filet tables has a double locking mechanism that insures a secure fit for your boat or home application. This double locking, Silver metallic anodized Aluminum, pedestal post locks into the surface mounting base and grill mounting bracket with (2) single push-buttons; allowing the entire assembly to be instantly installed or removed and stored for convenience.
The low-profile threaded twist-lock surface mounting base has been designed with a flush bottom so there is no need to cut a hole in your deck and measures just 5/8" tall and 7” diameter with a 5-3/4" bolt pattern.
With its versatility and convenience this is the perfect mounting option for boat swim platforms, boat decks, pontoon boats, or at home on the patio, balcony or deck.
Technical Specifications:
- Material - Anodized Aluminum
- Dimensions - Base Plate (H x W) - 17-15/16" x 7" (71 x 17.78 cm)
- Weight - 4.5 lb (2.05 kg)
- Mounting Application - Rectangular grills and Single mount tables
*Sold as an Individual
Manufacturer : Magma
Manufacturer Part No : T10-185
UPC : 088379101856
