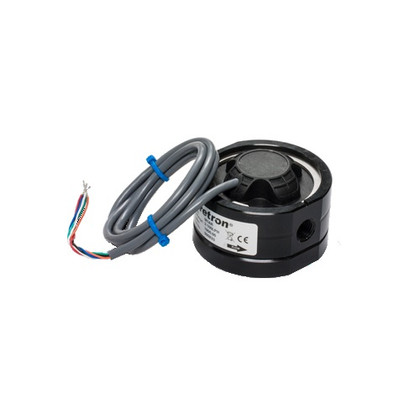

CAD DrawingCAD Drawing 2CAD Drawing 3Maretron M1AR Fuel Flow Sensor
2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
Model: M1ARFor use with Maretron FFM100 Fuel Flow Meter
Specifications| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -65°C to 170°C (-85°F to 338°F) |
| Port Size | 1/4"" NPT Female |
| Accuracy % Reading | ±0.25% (With K factor on sensor entered into FFM100) |
| Maximum Viscosity | 1000 cPs |
| Maximum Operating Pressure | 68.95 Bar (1000 PSI) |
| Strainer Size | 200 Mesh (If not already installed after fuel filter) |
| Cable Length | 1m (3.28 ft) |
| Weight | 1.66lbs |
| Dimensions | 2.91"" x 2.80"" x 1.91"" |
