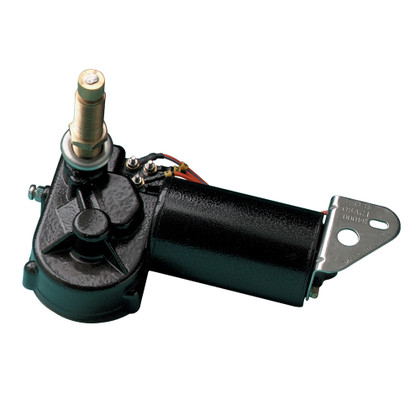

CAD DrawingCAD Drawing 2CAD Drawing 3Wiper Motor MRV 12V 2.5" Shaft - 80°
The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.
Features:
- Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
- 0.625" diameter shaft (16 mm)
- Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes 0.5" length of knurled arm fitting)
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Two-speed motor, can be operated as one speed
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking, coast to park
- Retail version includes 5 amp fuse and holder
- Stainless steel fasteners and mounting bracket
- Use with three-position switch (not included)
- Compact size - 7.625" L x 4" W x 2" D
- Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
- Stall current: 11.5 to 13.0 amps
- No load current: 0.5 to 1.2 amps
Manufacturer : Marinco
Manufacturer Part No : 34000
UPC : 035028340005
