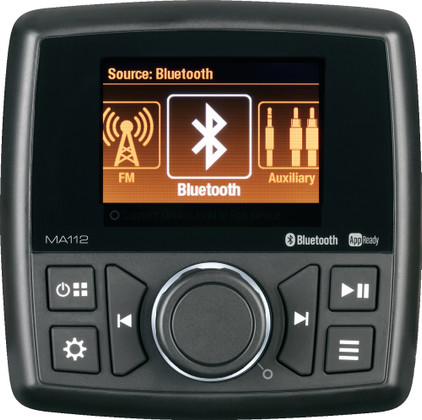

CAD DrawingCAD Drawing 2CAD Drawing 3Marine Audio MA112 AM/FM/USB Compact Bluetooth Stereo with App Control
Model: MA112- 2.8" color TFT display with White LED backlighting
- 12V DC (2-wire)
- Dimmable LED backlit control
- Illumination control (day and night)
- Maximum power output: 160 watts (40W x 4)
- Waterproof IPx6
- AM/ FM Tuner with 36 presets (18AM, 18 FM)
- Bluetooth audio (Supports A2DP and AVRCP)
- 1A USB charging capability
- Rear (RCA) auxiliary audio input
- Rear (RCA) auxiliary audio output (2 volt)
- 4-Channel amplified audio output
- UV and corrosion resistant
- Low battery warning
| General Specifications | |
| Power | 12vDC |
| Operating voltage range | 10-16vDC |
| Current Draw | 145mma - idle 1Amp - Nominal 8.5Amp - Maximum |
| Operating Temperature Range | -4°F to 158°F |
| Overall Dimensions | 4.5in H x 4.5in L x 4.4in D |
| Performance | |
| Output power RMS | 15 watt x 4 |
| Output power Maximum | 40 watts x 4 |
| Total Harmonic Distortion | 1% |
