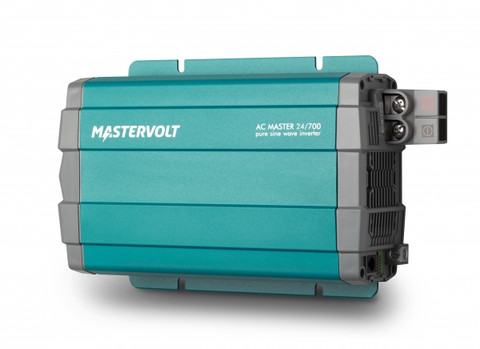

Mastervolt Ac Master 24/700 Inverter, 24v Input 120v 700 Watt Output

Mastervolt Ac Master 24/700 Inverter, 24v Input 120v 700 Watt Output

No reviews yet Write a Review
$334.21
SKU:
WTMAS28520700
UPC:
816882021329
Weight:
2.70 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Mastervolt AC Master 24/700 (120 V) Inverter

Model: 28520700
  • Pure sine wave technology protects sensitive equipment.
  • Delivers full output at high peak power under the most demanding conditions.
  • Automatic power saving system for extended runtime.
  • Compact and lightweight design, saving valuable installation time.
  • Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
  • Variable speed fan for quiet operation at low power.
  • Optional remote control for instant switch off of the inverter and all connected equipment
  • Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 24V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications
General specifications
Output voltage100/110/115/120 V — 50/60 Hz (selectable)
Output waveformtrue sine
Nominal battery voltage24 V
Recommended battery capacity ≥ 50 Ah
Continuous power at 25 °C / 77 °F, cos phi 1700 W
Continuous power at 40 °C / 104 °F, cos phi 1700 W
Peak load (1 min.)< 810 W
Peak load (1 s)< 1230 W
AC connectionNorth American socket with GFCI
Galvanic isolationYes
Efficiency93 %
Display/read-outLED indication: battery voltage, load level, status
Alarmspotential free alarm contact
Dimensions, hxwxd7.9 x 13.0 x 3.3 inch
Weight5.7 lb
Technical specifications
Technologyhigh frequency, input & output fully isolated
Low battery voltage, switches off at21 V
Low battery voltage, switches on at25 V
High battery voltage, switches off at33 V
High battery voltage, switches on at29 V
Input current (nominal load)35 A
No-load power consumption (ON mode)< 0.8 A
No-load power consumption (energy saving mode)< 0.06 A
Minimal DC fuse (slow blow)50 A
Minimal cable size16 mm
Harmonic distortion typical< 5 %
Cos phiall power factors allowed
Temperature range (ambient temp.)-4 °F to 140 °F
Coolingtemperature and load controlled fan
Protection degreeIP21, horizontal wall mounting
Protectionsover-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatibleyes, using a MasterBus AC Master Interface
