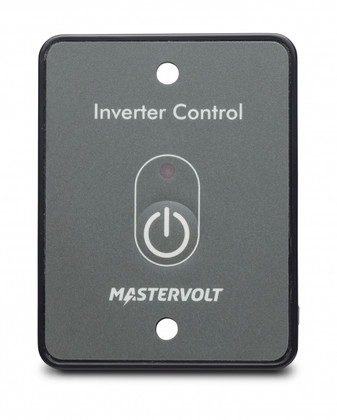

CAD DrawingCAD Drawing 2CAD Drawing 3Mastervolt AC Master Remote Control
Model: 70405080On/off control for the AC Master sine wave inverter with a clear on/off indicator which indicates when the inverter is active.
In addition, the AC Master Remote Control makes it possible to turn the inverter on or off automatically by means of an auxiliary input (12/24 V), for example when switching on the onboard AC power or while starting an engine.
The AC Master Remote Control comes with 8 m (25 ft) cable.
Specifications| Input voltage range AUX port (optional use) | 10.5-31 V DC |
| Standby power | < 40 mA |
| Operating temperature | 32 °F to 104 °F |
| Dimensions, hxw | 2.2 x 2.9 x 0.0 inch |
