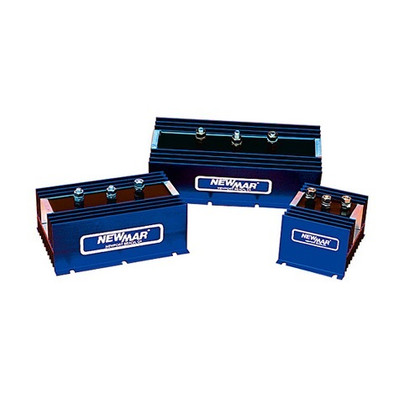

Newmar 1-2-70a Isolator 1ait 2batt 70amp

Newmar 1-2-70a Isolator 1ait 2batt 70amp

No reviews yet Write a Review
$114.03
SKU:
WTNEW1270A
Weight:
3.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3
Rated for 12-48 volt negative ground DC systems. Feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators.

Features:

  • Heavy duty construction
  • Rated for systems up to 48 volts DC
  • Rust-proof anodized aluminum case
  • Stainless steel mounting hardware provided
  • Protective covers provided for terminals
Performance Specifications

Operating temper ature: -40 to +80 degC
Duty cycle: Continuous rating to 50 deg C Derate linearly to 70% @ 80 deg C
Temp. rise: 95 deg C at full rated current (mount vertically for optimum cooling)
Voltage drop: At 50% load 0.7V - At full load 0.9V

1 70 3.25 3.1
