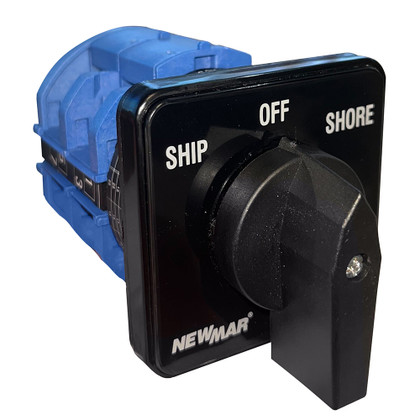

CAD DrawingCAD Drawing 2CAD Drawing 3SS Switch - 7.5 AC Selector Switch
This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- Maybe rear-mounted in a panel with a thickness of up to 1/4”
Specifications:
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
- Standard Plate Markings: SHIP-OFF-SHORE
- Depth Dimensions: 2-3/8 in.
Manufacturer : Newmar Power
Manufacturer Part No : SS SWITCH7.5
