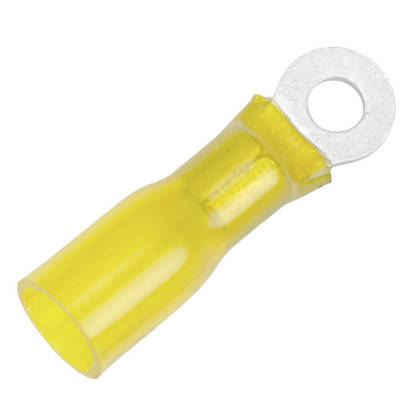

CAD DrawingCAD Drawing 2CAD Drawing 312-10 AWG Heat Shrink Ring Terminal - #10 Stud Size - 25 Pack
Ring terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.
Features:
- Tinned copper
- 600 Volts
- The operating temperature is -55°C to 125°C
- Highly compliant
Benefits & Protections:
- Solid connections
- Extremely durable
- Long-lasting
- Tin-plated
- Easy to install
Specifications:
- Color: Yellow
- Wire AWG: 12-10 AWG
- Stud Size: #10
- Terminal Pad Width (inch): 0.39”
- Package Size: Twenty-five included
Manufacturer : Pacer Group
Manufacturer Part No : TE10-10R-25
