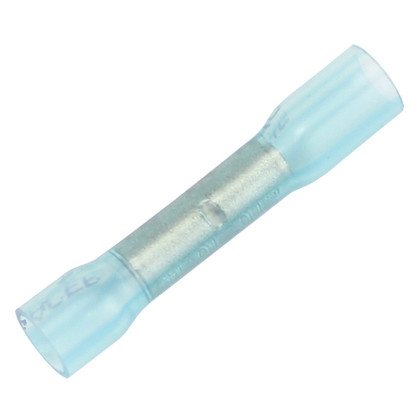

CAD DrawingCAD Drawing 2CAD Drawing 316-14 AWG Heat Shrink Butt Connector - 100 Pack
Butt splices are crimp connectors used to safely connect one or more wires to another wire. Step-down butt splices are meant to connect a higher-gauge wire to a lower-gauge wire. They could also be used to connect two or more smaller-gauge wires to a single wire. When selecting which type to get, pay special attention to whether they are epoxy lined or not. Many manufacturers do not line the interior of their butt splices with meltable glue. This epoxy reacts to heat and expands, creating a superior, environmentally sealed connection.
Features:
- Made from tinned copper and various insulations
- Up to 600 Volts
- Not applicable to all styles
- Operating Temp: -55°C to 125°C
- UL, CSA, RoHS Compliant
Benefits & Protections
- Impact Resistant
- Multiple Uses
- Long Term Protection
- Easy to Install
Specifications:
- Wire Range: #16-14 AWG
- Insulation Color: Blue
- Max Wire Insulation Outer Diameter (inch): 0.21"
- Package Size: One-hundred
Manufacturer : Pacer Group
Manufacturer Part No : TBSE14-100
UPC : 840248206723
