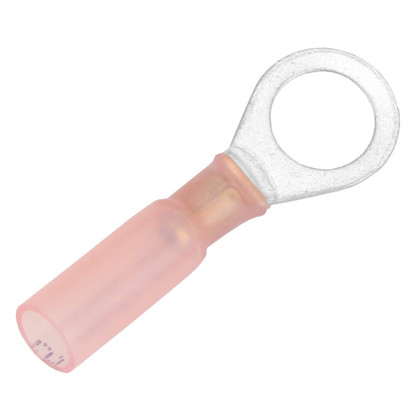

CAD DrawingCAD Drawing 2CAD Drawing 322-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 100 Pack
Ring terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.
Features:
- Tinned copper
- 600 Volts
- Operating temperature is -55°C to 125°C
- Highly compliant
Benefits & Protections:
- Solid connections
- Extremely durable
- Long-lasting
- Tin-plated
- Easy to install
Specifications:
- Color: Red
- Wire AWG: 22-18 AWG
- Stud Size (inch): 5/16"
- Terminal Pad Width (inch): 0.48”
- Package Size: One-hundred included
Manufacturer : Pacer Group
Manufacturer Part No : TE18-56R-100
