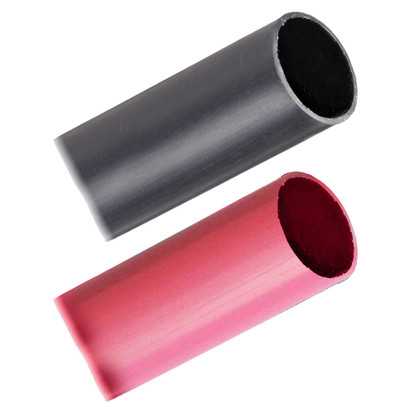

CAD DrawingCAD Drawing 2CAD Drawing 3Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 3" - Black/Red (2-Pieces Combo Pack)
BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.
Features:
- Highly abrasion and impact-resistant
- Easy installation, shrinks when heated over 120 °C
- The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
- A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
- Any connection in harsh conditions
- Adhesive lining provides a barrier against contaminants
- Excellent resistance to acids and alkalis
- Good resistance to fuel, oil, and solvents
Applications:
- Splice sealing
- Primary insulation
- Cable/jacket repair
- Direct burial/submersible
- Strain relief
Specifications:
- Expanded Inner Diameter: 1.1"
- Recovered Inner Diameter: 0.367"
- Application Range AWG: 1/0 - 4/0 (.40 - .95)
- Recovered Wall Thickness: 0.12"
Compliances:
- MIL-I-23053/15 Class 2
Manufacturer : Pacer Group
Manufacturer Part No : BHW1-3BKRD
UPC : 840248214391
