CAD DrawingCAD Drawing 2CAD Drawing 3DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)
Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.
Features:
- Packs include all parts needed to assemble a connector
- One to two extra terminals
- Cavity plugs to seal open circuits
Applications:
- Wire-to-wire applications
- Enclosed connectors offer field-proven reliability and rugged quality
Compliances:
- Ingress Protection (IP) Level: IP68 and IP6K9K
- EU RoHS/ELV
- Standard UL-94 Recognized
Characteristics:
- Wedge locks ensure contact alignment and retention
- Redundant Silicone Seals
- Hand-insertable and removable contacts
Technical Specifications:
- Number of Cavities: 2
- Housing: Rectangular receptacle, plastic reinforced with glass fiber
- Contact Size: 16 (13 amp)
- Wire Size: 14 AWG
- Holds Pin/Socket: Pins
- Operating Temperature: -55°C to 125°C
Contents:

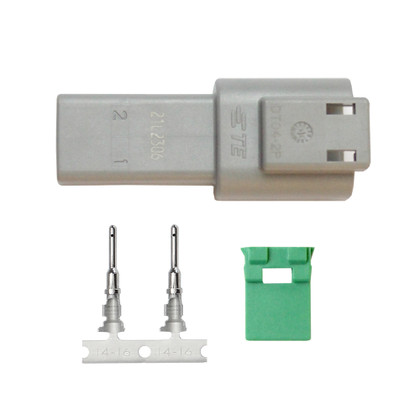

- (1) 2 pos. receptacle
- (1) 2 pos. wedge lock
- (3) pins
Manufacturer : Pacer Group
Manufacturer Part No : TDT04F-2RP
UPC : 840248214841
