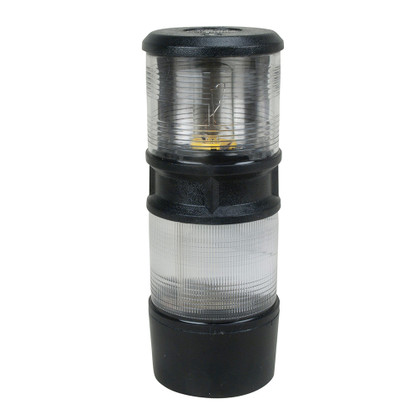

CAD DrawingCAD Drawing 2CAD Drawing 3Masthead/White All-Round Navigation Light - 12V
Features:
- White Polymer
- Clear Frosted Lenses
- 2-Mile (USCG 2nm) Certified (All-Round Light)
- 3-Mile (USCG 3nm) Certified (Masthead Light)
Technical Specifications:
- Voltage: 12 Volt (Bulb Included)
- Wattage: Upper: 25 watts / Lower: 10 watts
- Amperage: (25 watts) 12V: 2.08 amps / 24V: 1.04 amps, (10 watts) 12V: .83 amps / 24V: .42 amps
- Screw Size: #10
- Height Overall: 8-5/8"
- Height Lens: 2-3/4"
- O.D. Base Inches: 3-5/16"
- Visibility Arc: 360°
Manufacturer : Perko
Manufacturer Part No : 0200MABW01
