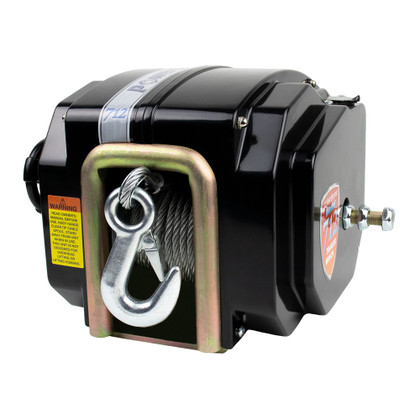

CAD DrawingCAD Drawing 2CAD Drawing 3712A Trailer Winch with 20' Strap
The Trailer Winch Series allows for ease and security of loading your boat onto the trailer or releasing it into the water. With quality motors and heat-treated gear mechanisms, the Trailer Winch Series guarantees power and strength.
Features:
- 20ft strap included
- Comes with 60 amp wiring harness
- UV-resistant ABS plastic housing & corrosion-resistant winch
- Power-in / Freewheel-out
- Smooth running and heat-treated gear system
- Level wind system, which prevents cable snarls
- Hand crank for emergencies
- The strap is made of 4-panel polyester webbing with a sewn forged snap hook
Specifications:
- Suggested boat length: (feet) 17'-23'
- Maximum boat weight: (lbs) 7,500
- Line speed: 14 FPM (Feet Per Minute)
- Vertical lift capacity: (lbs) 2,400
- Double line capacity: (lbs) 4,300
- Unit weight: (lbs) 33
- Dimensions: (inch) 10" x 10" x 8"
- Gear ratio: 225:1
*No remote control included
Manufacturer : Powerwinch
Manufacturer Part No : P77712-S
