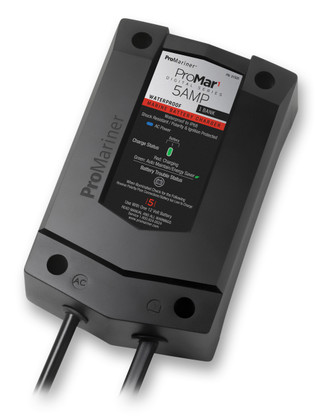

CAD DrawingCAD Drawing 2CAD Drawing 3ProMariner ProMar1 31505 Digital Series Battery Charger
Model: 31505- Fully Automatice 4-Stage Charging
- Dual mode Charge Status Indicator
- Battery 7 Wiring Fault Detection
- Rugged Shockproof Construction
- Auto Maintain/Energy Saver Mode Extends battery Life
- Safe for Long an Short Term Storage
- Pre-wired with Waterproof Inline DC Fuses and Nickel Plated Copper Ring Terminals
ProMar1 DS Generation 3 reflects a new outward design taken to the next level in performance with all Digital Charging Technology. Fully Automatic with a 4-Stage Charging algorithm proven to extend battery life. Sequential modes of Analyzing, Charging, Conditioning and built-in Auto Maintain mode,safe for short and long term storage periods. ProMar1 DS features include: Battery Trouble Status LED per charging output identifying battery or installation wiring conditions requiring attention, waterproof inline fuse holder that is easily separated with a threaded two part design, dual mode Charge Status LED indication of each battery being individually charged and maintained.
ProMar1 DS is designed for use in harsh outdoor environments with indusbial grade jacketed DC cables,JTOW outdoor rated ACpower cable for maximum wiringprotection, in addition to fully encapsulated IP68 waterproof and shock proof construction
Designed and certified to UL Marine 1236,the new energy efficient CEC (California Energy Commission) and DOE (Department of Energy) requirements.
Industry standard power ratings for moderate charge times and a single preset charging algorithm,safe for Flooded (Lead Acid) or Gel batteries.
Specifications| Output Voltage | 12 vDC |
| Output Amps | 5 Amps |
| Banks | 1 |
| Cable Length | 6 ft |
| Dimensions | 6.4"" X 4.1""x 2.4"" |
| Input voltage | 110-120 vAC |
| AC Plug | NEMA 5-15 |
