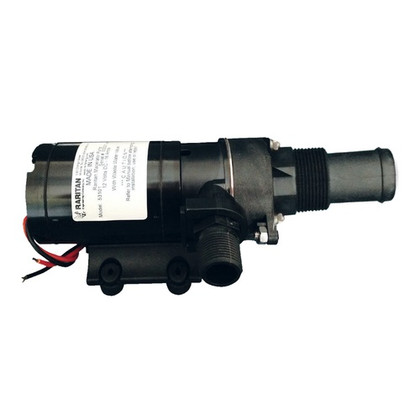

CAD DrawingCAD Drawing 2CAD Drawing 3Raritan 12v Macerator Pump with Barb Adapter
Model: 5310012UPC: 085462035722
Specifications
| Pump | Self priming Flexible rubber impeller with Stainless steel wearplate |
| Impeller | Raritan Proprietary Nitrile compound |
| Blade | Stainless steel double cut |
| Seal | Viton Lip with 316 SS spring and case |
| Motor | Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing |
| Ports | Inlet: 1-1/2? hose barb & 1-1/2? NPT Male Outlet: 3/4? MNPT |
| Lead wires | 14 GA, Red and black |
| Weight | 5lbs |
| Approvals | Ignition protected, ISO 8846 |
| Max Head | 30' |
| Input Voltage | 12vDC |
| Input Draw | 12.3 Max at 20' Head |
| Dimensions | 10"" L x 3.8"" H x 5.8"" D |
