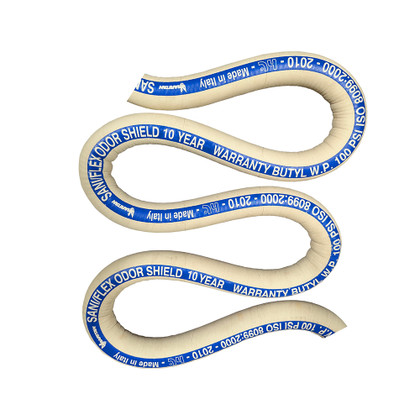

CAD DrawingCAD Drawing 2CAD Drawing 3SANI/FLEX 1.5" Odor Shield Hose - 50'
Highest quality marine sanitation hose. Butyl rubber construction has the lowest odor permeation level of any rubber or PVC material hoses. Extremely flexible for easy installation with a low bend radius of up to two times its diameter.
Features:
- Impermeability - Special butyl white rubber compound tube odor-free
- Flexibility - Allows tight bending radius making any installation easy
- Reinforcement - Double steel wire Helix with high-strength synthetic textile yarn
- Cover - White – abrasion, ozone, seawater resistant rubber
- Surface - Smooth fabric finished – antibacterial vanilla scented
- Interior - Smooth walled – no ridges – easily fits over fittings
- Warranty - 10-year guarantee against odor permeation
Specifications:
- ID: 1-1/2"
- OD: 1-7/8"
- Weight: 0.6lbs/ft.
- MAX Pressure: 105 PSI
- Burst Pressure: 315 PSI
- MAX Vacuum: 13.5 PSI
- Bend Radius: 3.15"
Manufacturer : Raritan
Manufacturer Part No : SFH50
