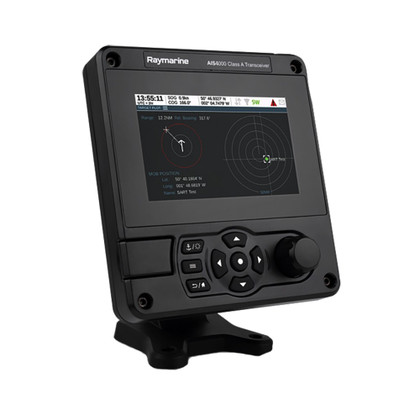

CAD DrawingCAD Drawing 2CAD Drawing 3AIS4000 Class A Automatic Identification System (AIS) Transceiver
Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.
The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.
Advanced Class A AIS Capabilities:
- AIS4000 is a full-function Automatic Identification System transceiver certified for SOLAS and Inland Waterway applications.
- Fourth generation AIS technology for expanded speed, range, and processing performance
- Full color target display with optional C-MAP ENC mapping
- Integrated Man Overboard/PLB alerting and tracking system
- CPA/TCPA data and alarms
The full-featured AIS4000 brings a level of functionality to Class A transceivers:
- Large 5” 800 × 480 color display
- Integrated Wi-Fi
- NMEA 2000
- Easy-to-use, intuitive interface
Designed for harsh conditions, AIS4000 is right at home on any vessel class:
- Certified to the highest industry standards for waterproofness, shock, and vibration
- Compact enclosure with NMEA2000 and NMEA0183 connectivity
- Junction box included for expanded shipboard sensor and ECDIS connectivity
- Flexible overhead, bulkhead, desktop, and surface mount options
Features:
- Large 5” 800 x 480 color display
- Navigation chart display via SD card
- Integrated Wi-Fi
- NMEA2000 and NMEA0183 connectivity
- Integrated MOB/PLB alerting and tracking system
AIS4000 Tranceiver System Includes:
- E70601 - AIS4000 Bundle
- A80589 - GNSS Antenna
- A80587 - Power Cable
- A80593 - 2 x Data Interface Cables
- A80586 - Fixings Pack
- A06045 - DeviceNet to STNg Cable
- Literature - Owner's Manual, Warranty Card, Mounting Template and Quick Start Guide
Product : RAYMARINE AIS4000 TRANSCEIVER BUNDLE CLASS A
Manufacturer : Raymarine
Manufacturer Part No : E70601
Product : RAYMARINE AIS4000 TRANSCEIVER BUNDLE CLASS A
