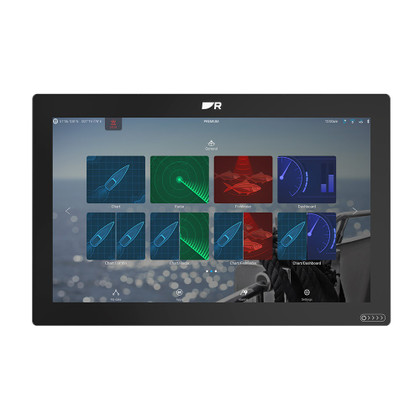

CAD DrawingCAD Drawing 2CAD Drawing 3Axiom 2 XL 19 Multifunction Display
Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.
Features
- A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
- Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
- Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
- Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
- HDMI output for connecting to remote monitors or HDTVs
- HDMI input and USB touchscreen input for remote PC integration
- Analog audio output for integrating with marine entertainment systems
- Easy to upgrade with the same mounting footprint as Axiom XL
- Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
- Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
- NMEA 2000 port
- Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
- Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
Manufacturer : Raymarine
Manufacturer Part No : E70662
UPC : 723193844960
