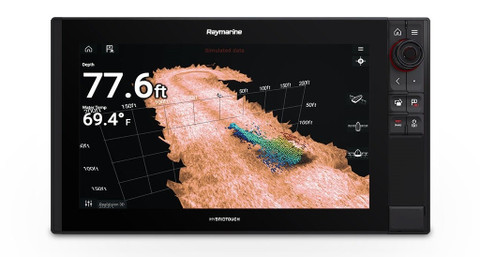

Raymarine Axiom Pro 16rvx  Mfd No Transducer Lighthouse Nc3 North America

Raymarine Axiom Pro 16rvx Mfd No Transducer Lighthouse Nc3 North America

No reviews yet Write a Review
$4,791.31
SKU:
WTRAYE7037300102
UPC:
723193838259
Weight:
24.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Raymarine Axiom Pro 16RVX 15.6"" MFD With RealVision 3D, 1kw CHIRP sonar and Lighthouse NC3 North America Lakes and Coastal Tide Stations

Model: E70373-00-102
  • RealVision 3D, 1kw CHIRP sonar
  • NMEA2000 & NMEA0183
  • Sonar Scroll Back
  • HybridTouch™
  • Quad Core Processor
  • Optical Bonding Technology & IPS Displays
  • IP & Analog Video
  • Clear Cruise™
  • Quantum CHIRP, HD & SHD
  • NMEA2000 & NMEA0183
Specifications
Display Size15.6"" IPS Optically Bonded LCD
Display Resolution1920 x 1080 FHD
Display TypeMultitouch
Brightness1,200 nits
Viewing AngleDegrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
MountingTop, Front, and optional RAM ball mount adapter
Waterproof RatingIPX6 / IPX7
Operating Tempminus 13deg F to 131deg F (-25deg C to +55deg C)
Storage Tempminus 22deg F to 158deg F (-30deg C to +70deg C)
Sensors
Sonar Type - Built-inRealVision 3D, 1kw CHIRP sonar
Sonar Connections25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.
Sonar DepthCHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)
External SonarYes - CP100, CP200, CP370, CP470, CP570 via RayNet
RadarYes - Quantum, Digital, HD Color and Super HD Color Radars
AISYes - N2K compatible
GNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)
Autopilot ControlYes - Evolution Autopilot
Thermal Night VisionYes - IP or Analogue
Video / Camera1 x Analogue input (BNC) Up to 10 IP Cameras
WeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only
AudioN2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]
Digital SwitchingYes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]
Remote ControlRMK-10 (A80438) & RCU-3 (E62351)
Networking
Ethernet2 x 10/100/1000 Mbits/ Network (RayNet)
NMEA01831 Transmit / 2 Receive
NMEA20001 x NMEA2000 port (DeviceNet microC)
SeaTalkNGRequires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)
USB1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-FiWiFi - 802.11 a / b / g / n
BlueToothBluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]
Navigation
CartographyLighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal16GB Solid State
16GB Solid State2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
Input Voltage12V and 24V DC (8 V to 32 DC)
Input Draw ~45W
Dimensions17.8"" x 10.2"" x2.72"" (452 x 258 x 69 mm)

What's in the Box:
  • Axiom Pro 16RVX
  • Trim Kit
  • Suncover
  • Trunnion Kit
  • PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
  • Mounting Hardware
  • Mounting Template
  • Quick Start Guide
  • Warranty Card
  • Raymarine window decal
  • Lighthouse NC3 North America Lakes and Coastal Tide Stations microSD
