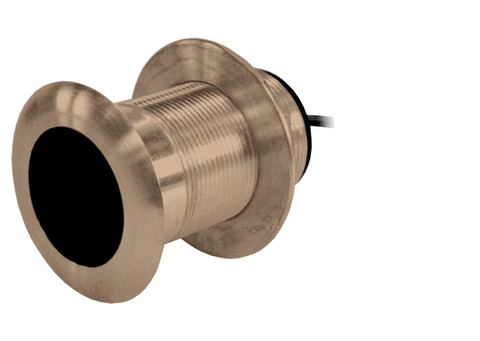

CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine B150M 300 Watt 20Deg Tilt Wide Beam CHIRP Thru Hull
Model: A80805- Depth and fast-response water-temperature sensing
- 300 W of power with a maximum depth of 183 m (600')
- Medium frequency: 95 to 155 kHz - 26° x 17° beamwidth put more energy on targets for great target separation
- 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Bronze housing for use in a fiberglass or wood hull
- Also available as a transom mount (TM150M)
- Patented Xducer ID® technology
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
Airmar’s B150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depth.
Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
Specifications| Power Rating | 300 W |
| Max Deadrise Angle | 24° |
| Housing | Bronze |
| Functions | Depth, Temperature |
| Hull Material | Fiberglass or wood |
| Max Vessel LOA | Up to 8 m (26') |
| Hole Size | 51 mm (2"") |
| Usable Shaft Length | 66.5 mm (2.62"") |
| Mounting Style | Tilted Element Thru-Hull |
| Acoustic Window | Urethane |
| Common Use | Leisure/Yachting, Fishing |
| Max Deadrise | Up to 24° |
| Max Depth | 183 m (600') |
| Medium Frequency | 95-155 kHz |
| Medium Frequency Beamwidth | 26°-17° |
| Retractable housing | No |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Tilted Element | Yes |
| Weight | 1.4 kg (3 lb.) |
