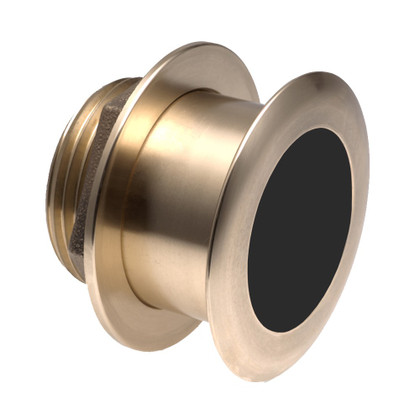

CAD DrawingCAD Drawing 2CAD Drawing 3B175H-W 1KW Bronze Thru Hull 12° Tilted Element
Features:
- Installation: Thru Hull
- Material: Urethane
- Power (RMS): 1kW
- Max Depth(ft): 800
- Frequency (KHz): 150-250
- Records: Depth and Temperature
- Approved Hull Material: Fiberglass/Wood
- Cable Length (ft/M): 6ft/2M
- Supported deadrise: 8-15° Deadrise
Additional Notes: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10M Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
