CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine CAM220 Augmented
Reality Pack

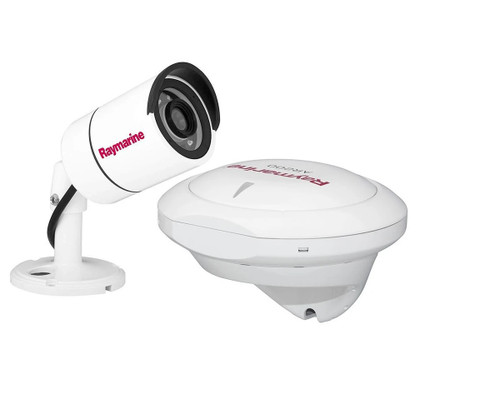

Model: T70452This kit includes AR200 and CAM210 to add augmented reality to Axiom MFD.
The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.
Raymarine’s CAM200IP is a ruggedized, high-definition, day and night network video camera that instantly transforms any LightHouse II Multifunction Display into a powerful video observation system.
What's in the Box:
- Mounting trim (top)
- Small sealing ring
- AR200
- x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
- Mounting tray (bottom)
- x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
- Bulkhead (wall) bracket
- Large sealing ring
- Documentation
- 6m (19.7ft) SeaTalkNG white cable
