CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine EV-100 Wheel Pilot with p70Rs Control
Model: T70152- Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
- Designed for cockpit installations.
- SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
- Requires no complicated setup or autopilot calibration.
- Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

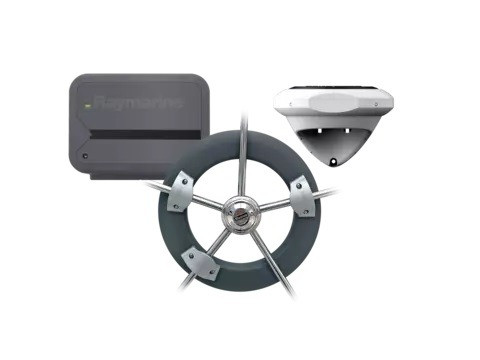

The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems includes a p70Rs autopilot control head.
What's in the Box:
- E12093 Wheel Drive
- E70328 p70s Control
- E70098 ACU-100
- E70096 EV1 Sensor Core
- R70160 Cabling Kit
