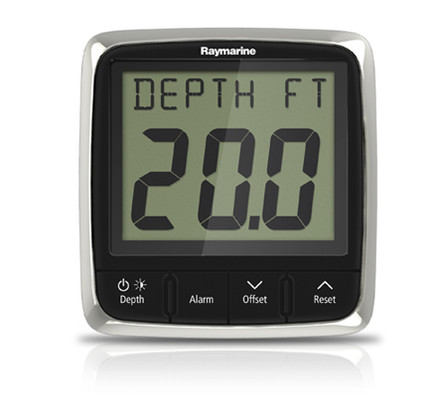

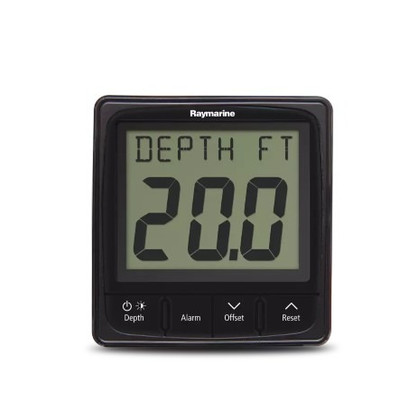

CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine i50 Depth System With Thru Hull Transducer
Model: E70148- Oversized digits for easy viewing by day or night
- Red backlighting enhances night visibility
- SeaTalk, NMEA2000 and SeaTalk network compatible
- Built-in depth transducer interface
- Compact footprint
- Low power consumption
- Surface mount or optional trunnion mount kit
The i50 Depth displays minimum and maximum depth with audible shallow, anchor and deep water alarms. Extra large digits and a simple keypad control make the i50 easy and quick to use.
The i50 Depth instrument display reveals real-time water depth along with audible and visible alerts for shallow water. It also tracks maximum and minimum depth as well as the depth trend. With large digits and audible alarms for deep, anchor, and shallow water, this display works perfectly for sail boats, power boats, yachts, and RIBs. The i50 Depth instrument is engineered for easy viewing. Its high-contrast LCD, oversized digits, and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. I50 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.
Specifications| Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) | |
| Connections | 2 x SeaTalk connections (compliant with SeaTalk), Transducer connections |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 degC to +70 degC (-22 degF to 158 degF) |
| Operating temperature | -20 degC to +55 degC (-13 degF to 131 degF) |
| Conformance | |
| Standards | Europe 2004/108/EC |
| Power | |
| Current (typical / max) | 45-65 mA (display only) / 200 mA maximum (transducer connected) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Power consumption | 1 W typical (display only), 2.4 W maximum (transducer connected) |
| LEN (NMEA 2000 Load Equivalency Number) | 4 |
What's in the Box:
- i50 Instrument display
- P319 Depth through hull transducer
- Suncover (to match i70s, p70s, p70Rs, eS Series)
- Front bezel (to match i70s, p70s, p70Rs, eS Series)
- Gasket
- Suncover (to match a, c, e Series)
- Front bezel (to match a, c, e Series)
- 400mm (15.7 in) SeaTalk spur cable
- SeaTalk blanking plug
- Fixing screws x4
- Documentation
