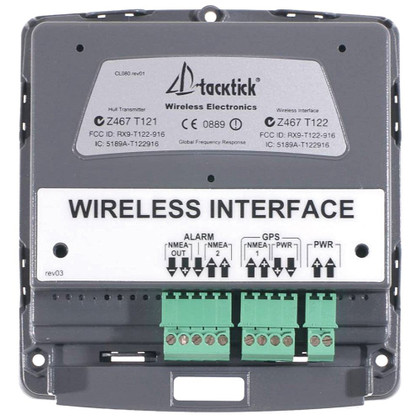

CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine T122 Wireless Interface
Model: T122- Only 135g (0.3lbs)
- 9 - 24 V external power supply
- NMEA 0183 Ver 2.3
- 2 inputs and 1 output
- External Alarm connector
This interface enables sailors to integrate other marine electronics into any of the Micronet instrument range. Compatible with instruments using the NMEA language, the Wireless NMEA Interface (2 inputs/1 output) collects data from autopilots, GPS, chartplotters, PDAs and other on board instruments and transmits it wirelessly to the Micronet displays. Plugged into an on board PC, Micronet can send and receive information so that navigation and tactical software can be displayed anywhere on deck.
The Wireless NMEA Interface may be used with PC software to create custom pages on the T110 Micronet Digital Display using Proprietary NMEA Sentences.
Specifications| 9 x 6 x 4 inches | |
| Item Weight | 3.9 pounds |
| Shipping Weight | 14.4 ounces |
- Shipping Programs:
- Qualifies for Ground and 2 Day
- Prop 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Manufacturer:
- TELEDYNE FLIR MARITIME US, INC
- Conditon:
- New unit
