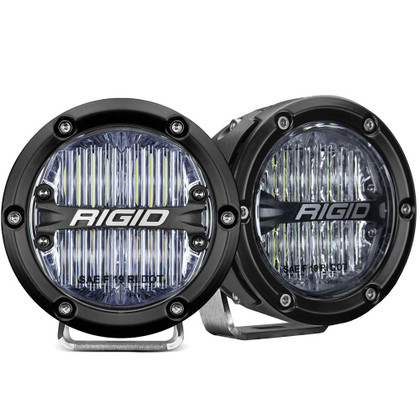

CAD DrawingCAD Drawing 2CAD Drawing 3360-Series 4" LED SAE Fog Beam - White - Set of 2
RIGID's SAE-Compliant Lights were developed specifically for dust, fog, and other low-visibility conditions while being legal for use on the street. These long-range high-intensity lights draw very little power and provide up to 50,000 useful hours. RIGID's SAE-Compliant Lights represent the ultimate street-legal lighting solution in low-visibility conditions. Compliant with SAE J583.
Features:
- SAE J583 Compliant Street Legal LED Fog Light
- White LED Light
- Removable Bezel for Color Matching
- Removable Bezel and Side Fairings for OEM Applications
- 9-36 VDC Operation
- Flying Leads for Universal Installation
- High-Grade Alloy Housing and Heatsink
- Reverse Polarity Protection
- Over/Under Voltage Protection
- IP68 Rated - Dust/Water Ingress
- Pressure Equalizing Vent
- Integrated Thermal Management System
- Impact Resistant Polycarbonate Lens
- Wiring Harness Sold Separately
- Operating Temp -40 degrees F To +145 degrees F
- RoHS Compliant
- Limited Lifetime Warranty
- Legal For On-Road and Off-Road Use
Product Comes With:
- Two 4 Inch 360-Series PRO SAE White Fog Lights
- Mounting Hardware
Specifications:
- Size: 4"
- Weight: 1.30lbs
- Optics: SAE
- Watts: 40W
- Amp Draw: 2.86
- Raw Lumens: 3445
- Lux @ 10m: 137.33
- Beam Distance @ 1 Lux: 117.2
- Beam Distance @ .25 Lux: 234.4
- Peak Beam Intensity (cd): 13,733
- Horizontal Beam Angle: 68.6
Manufacturer : RIGID Industries
Manufacturer Part No : 36120
