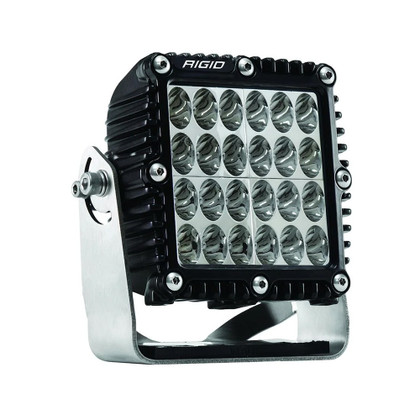

CAD DrawingCAD Drawing 2CAD Drawing 3Q-Series Pro Driving
The Q-Series is designed and built to withstand the harshest working environments imaginably. Constructed of the toughest and most durable materials available, including a double-pass TIG-welded stainless steel bracket with a vibration isolator, the Q-Series provides reliable, powerful LED light and is tough enough to withstand mining, agriculture, construction, and the oil and gas industries.
The rugged construction also makes it well-suited to extreme environments. If the application is severe, the Q-Series is the ultimate lighting solution. They feature the same legendary lighting technology and superior build quality as the rest of RIGID’s lighting products, providing reliable and efficient lighting on demand.
Features:
- 50,000-plus hour lifespan
- 9-36 V DC
- Durable UV-resistant powder coat
- High-grade aluminum alloy
- Integrated Thermal Management System
- Impact-resistant polycorbonate lens
- Over/under voltage protection
- RFI/EMI protection
- Reverse polarity protection
- RoHS compliant
- IP68 Compliant - dust/water ingress
- Operating Temp. -40 deg. F To +145 deg. F
- SAE J575 Compliant - shock/vibration
- Available in white and black housing
- Pressure equalizing vent
- Waterproof connector (exclusions apply)
- Limited lifetime warranty
- Off-road use only
Specifications:
- Size (inch): 7" X 7"
- Weight (Lbs): 6.60
- Optics: Driving
- Watts: 195
- Amp Draw: 13.9
- Voltage Max: 36
- Raw Lumens: 19008
- Lux at 10m: 1035.3
- Beam Distance at 1Lux: 321.8
- Beam Distance at .25Lux: 643.5
- Horizontal Beam Angle: 48.4
Product Comes With:
- Mounting Hardware
- Stainless Steel, Heavy Duty U-Shape Bracket
- Vibration Isolators
- Harness w/Switch
- Deutsch Connector
*Sold as an individual
Manufacturer : RIGID Industries
Manufacturer Part No : 544313
UPC : 849774021947
