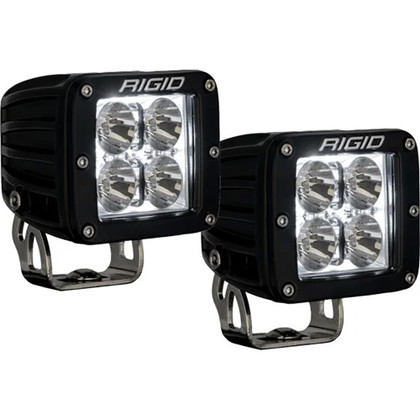

CAD DrawingCAD Drawing 2CAD Drawing 3Radiance + Pod - RGBW - Pair
The stylish versatility of the RIGID Radiance lighting family just got better. Now introducing Radiance+ RBGW Pod Lights. A compact cube similar to RIGID's popular D-Series, the Radiance+ RGBW Pod provides the user with the ability to toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. Radiance+ RBGW takes customization to the next level. Own the night in style with Radiance+ RBGW lighting.
Features:
- 8 backlighting options (red, green, blue, light blue, purple, amber, white, or demo mode)
- Backlighting can be independently controlled using switch logic
- Fits all D-series light covers and mounts
- Black exposed printed circuit board
- 10-year warranty
- 9-15 V DC
- Black powder coat finish
- Pressure equalizing vent
- IP68 compliant - dust and water ingress
- High-grade aluminum alloy housing and heat sink
- Over/under voltage protection
- high-impact polycarbonate lens
- Mounting brackets are included
- RFI/EMI protection
- Rohs compliant
- Off-road use only
Product Comes with:
- Two Radiance+ RGBW light pods
- Harness
- Mounting brackets
- Media pack
Specifications:
- Size (inch): 3"
- Weight (Lbs): 1.30
- Optics: Broad Spot
- Watts: 17
- Amp Draw: 1.2
- Raw Lumens: 2180
- Lux at 10m: 264
- Beam Distance at 1Lux: 163
- Beam Distance at .25 Lux: 325
- Peak Beam Intensity (cd): 26400
- Horizontal Beam Angle: 19.9
Manufacturer : RIGID Industries
Manufacturer Part No : 202053
