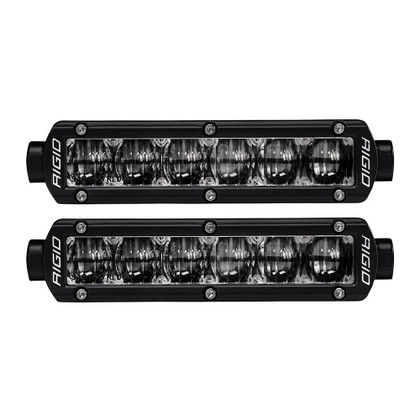

CAD DrawingCAD Drawing 2CAD Drawing 3SR-Series 6" SAE Fog Light - Compliant Pair
RIGID SAE Compliant Fog Lights allow RIGID Industries LED Lights to be used on the road and not just off-road. RIGID created the perfect output spread and height achieved by the new patented Clarilux™ optic system. The color temperature of the LEDs is a perfect range of pure daylight to penetrate the night as your eyes read the road. The SAE Compliant lights project long-range high-intensity light while drawing very little power and providing up to 50,000 useful hours. The low profile design, advanced engineered heat sink, cast aluminum durability and the highest quality of strength of a polycarbonate lens is the ultimate solution for your street-legal lighting needs in North America.
Features:
- SAE J583 Compliant Street Legal LED Fog Light
- White LED Light
- "Integrated Thermal Management System"
- Reverse Polarity Protection
- 9-36 VDC Operation
- RFI/EMI Protection
- Impact Resistant Polycarbonate Lens
- High-Grade Alloy Housing And Heatsink
- Over/Under Voltage Protection
- IP68 Rated - Dust/Water Ingress
- Pressure Equalizing Vent
- Patented Optics
- Durable UV Polyester Powder Coat
- 50,000 Hour Lifespan
- Operating Temp -40 degrees F To +145 degrees F
- RoHS Compliant
- Limited Lifetime Warranty
- Legal For On-Road and Off-Road Use
Product Comes With (Black Housing Only):
- 2-1”, 2-3” Black Powder Coated, L-shape brackets
- Deutsch Connector (6")
- Open Leads, No Connector (20”-30”)
- Harness with Switch
Specifications:
- Size: 6"
- Weight: 1.78lbs
- Optics: SAE
- Watts: 21W
- Amp Draw: 1.5
- Raw Lumens: 2640
- Lux @ 10m: 130
- Beam Distance @ 1 Lux: 114
- Beam Distance @ .25 Lux: 228
- Horizontal Beam Angle: 70
Manufacturer : RIGID Industries
Manufacturer Part No : 906703
UPC : 849774025174
