Helmsman Compass
Helmsman Compass Features:
Approx. Shipping Weight: 2lbs (907g)
Notes: Comes standard with 12V lighting. 24 & 32V lighting options are available. Some custom built OEM models may have different lighting.
For all Helmsman built before 1992 please see the service manual page 5-14 or contact Ritchie for replacement lighting.

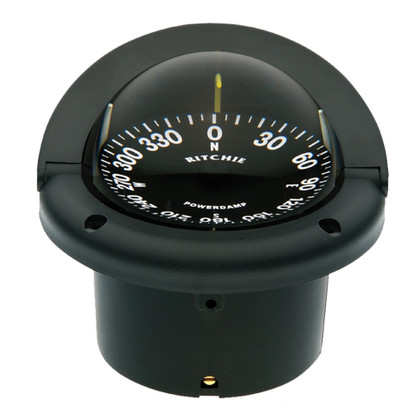

Product : RITCHIE HF-742 HELMSMAN COMPASS
Manufacturer : Ritchie
Manufacturer Part No : HF-742
UPC : 010342138262
Product : RITCHIE HF-742 HELMSMAN COMPASS
Helmsman Compass Features:
- 3-3/4" PowerDamp Flat Dial
- Easily Installed, Fits 4" (10.16cm) Mounting Hole. (NOTE: Be sure you print the template Actual size)
- Exclusive Built-in Green NiteVu Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Composite Construction for Extended Operating Range
- Adapter Rings Available. Sold separately. 6" (15.24). Retrofits Existing Mounting Hole for Model No. HF-72 order H-ABLK. For Model No. HF-72W order H-AWHT
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2lbs (907g)
Notes: Comes standard with 12V lighting. 24 & 32V lighting options are available. Some custom built OEM models may have different lighting.
For all Helmsman built before 1992 please see the service manual page 5-14 or contact Ritchie for replacement lighting.
Product : RITCHIE HF-742 HELMSMAN COMPASS
Manufacturer : Ritchie
Manufacturer Part No : HF-742
UPC : 010342138262
Product : RITCHIE HF-742 HELMSMAN COMPASS
