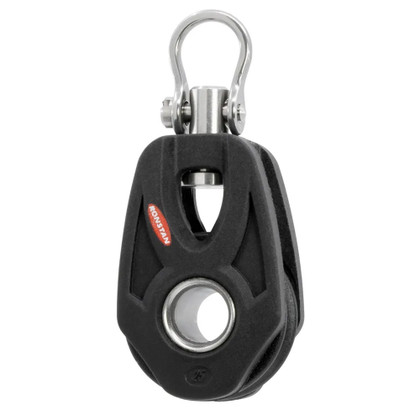

CAD DrawingCAD Drawing 2CAD Drawing 3Series 25 Ball Bearing Orbit Block™ - Becket & Swivel Shackle
Single sheave ball bearing block with becket hub and swivel shackle head.
Series 25 Ball Bearing Orbit Blocks™, delivering superior strength, reduced weight, and exceptional performance for high-demand dinghy and small boat applications.
Designed with competitive sailors and performance boats in mind, these compact 25mm blocks are engineered to achieve the highest possible strength-to-weight ratio. Featuring Ronstan’s renowned high compression strength acetal bearing system, the Series 25 BB Orbit Blocks™ are a lightweight yet durable solution, ideal for control line systems such as mainsheet and spinnaker sheet turning blocks, cunninghams, and cascading vangs on dinghies up to 4 meters.
Each block has a stainless steel hub for versatile lashing attachments and through-sheave becket functionality, making them adaptable to a wide range of rigging setups. The hub accommodates up to 4mm (5/32") lashing and ensures maximum efficiency without compromising reliability.
Features:
- 2-stage ball bearing system.
- Suits up to 8mm (5/16”) lines.
- Hollow hub for becket take-off.
- Lashing blocks suit up to 4mm (5/32”) lashing.
Specifications:
- Max. Rope diameter (in): 5/16
- M.W.L. (lb): 500
- Sheave diameter (in): 1
- B.L. (lb): 990
- Weight (oz): 0.6
Applications:
- Mainsheet and spinnaker sheet turning blocks on dinghies to 4m (13ft).
- Control lines.
- Cascading vangs.
- Leech lines & cunninghams.
Materials:
- Frame/cheeks: Toughened, glass fibre reinforced nylon.
- BB Sheave and balls: high compression strength acetal.
Manufacturer : Ronstan
Manufacturer Part No : RF28100
UPC : 9316800661916
