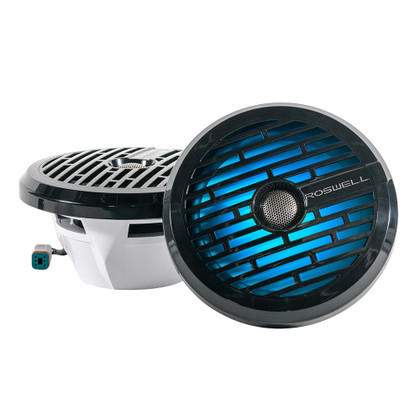

CAD DrawingCAD Drawing 2CAD Drawing 3R1 8” Marine Speakers - Black - 100W RMS & 200W Peak Power
Roswell R1 8" Marine Speakers answer the call for clarity and bring a signature sound to every waterway. Defining a culture of acoustic perfection, Roswell R1 Audio has become a catalyst for new experiences, celebrated by those who demand the best. Breaking barriers to deliver R1 Audio in any application, the R1 8" was developed to ensure everyone discovers a place where imagination meets sound.
Features:
- R1 8-inch component-style speaker
- Integrated RGB LED backlight the cone to create your desired visual atmosphere Deutsch wiring harness included for water-tight connection
- Extreme saltwater and UV resistance
- Klippel® tested and certified to guarantee acoustic performance
- The locking trim ring conceals all mounting hardware
- Coaxilly mounted 1 in. silk dome tweeter
- Concealed integrated 12 dB/oct crossover network
Specifications:
- Color: Black grill
- Continuous Power (RMS): 100 Watts
- Peak Power (RMS): 200 Watts
- Sensitivity: 90 dB @ 1W/1M
- Frequency Response (+ / - 3 dB): 50Hz – 20kHz
- Impedance Ω: 4Ω
Dimensions:
- Nominal Diameter: 8 in. I 20.32 cm
- Overall Diameter: 9.21 in. I 23.4 cm
- Basket Diameter: 7.075 in. I 18.0 cm
- Mounting Depth: 3.325 in. I 8.45 cm
- Grill Height: 1.5 in. I 3.8 cm
*Sold as a Pair
Manufacturer : Roswell Marine
Manufacturer Part No : C920-1611
UPC : 066066216113
