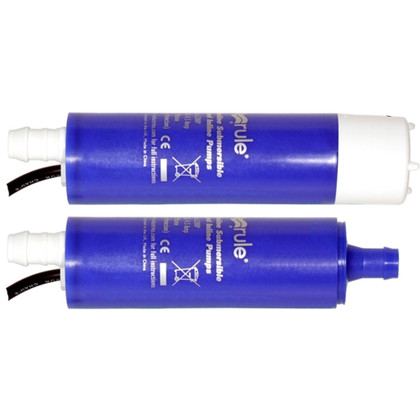

CAD DrawingCAD Drawing 2CAD Drawing 3IL200 Plus In-Line Submersible Pump - 24V - 2.8GPM
Centrifugal submersible and inline pump.
Features:
- Cable Length: 1(m)
- Connections: 1/2" (12.7mm) Hose
- Dimensions: 142mm long, 38mm diameter
- Maximum Current: 1.5(amps)
- Output: up to 12.7 litres/minute at up to .75bar (2.8 gallons/minute at 11psi)
- Suitable for diesel, fresh and salt water
- Quick diesel transfer with no spillage
- Bait tank aeration, diesel transfer, water transfer.
- Water Systems to 80 ºC
- Intermittent light duty
- Motor life approx 250 hours
- Actual Weight: 0.33 Kg (Approx. 0.53 Kg packed)
Product : RULE IL200 PLUS IN-LINE SUBMERSIBLE PUMP 24V 2.8 GPM
Manufacturer : Rule
Manufacturer Part No : IL200P-24
UPC : 042237109873
Product : RULE IL200 PLUS IN-LINE SUBMERSIBLE PUMP 24V 2.8 GPM
