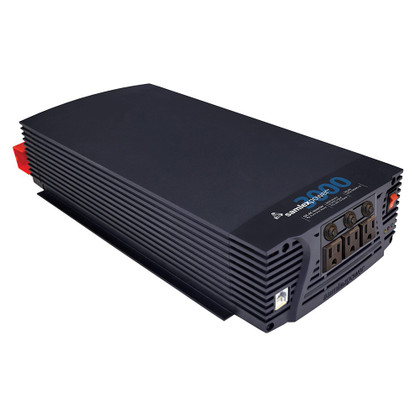

CAD DrawingCAD Drawing 2CAD Drawing 33000 Watt Pure Sine Wave Inverter
The NTX-3000S-12 Pure Sine Wave power inverter delivers reliable and clean power for a variety of applications. One of its key features is connecting multiple 120V AC household appliances directly to the unit using standard 15-amp receptacles. There is also a 15-amp circuit breaker for each receptacle to protect devices and the inverter from overload. Other features include the compact design, quiet operation, a single variable speed fan for quiet operation, and ease of connection. The NTX-3000S-12 is also compatible with the same remote control as previous NTX series models, ensuring continuity and ease of use for existing setups.
The NTX Series Pure Sine Wave power inverters are FCC-certified to ensure electrical interference will not be a problem when operating near sensitive equipment. The NTX-3000S-12 is also ETL-certified to meet strict UL and CSA safety standards.
LCD Remote Control (NTX-RC) is included with all models.
Features:
- 2-year limited warranty
- Pure Sine Wave form of AC output voltage
- High efficiency
- Compact size and low weight
- Very low-idle current
- Samlex Hypersurge™ technology to easily start high-surge loads
- LCD remote control model NTX-RC
- Low noise load and temperature-controlled variable speed fan
- Wide input voltage range
- Three standard 15A receptacles to power AC equipment
Specifications:
- Input: 12 VDC
- Output: 115 VAC
- Watts: 3000 Watts
- Surge: 6000 Watts
- Weight: 12.0 (lbs)
- Weight: 5.5 (kg)
- Dimensions: 8.50 x 17.75 x 3.62 (in)
- Dimensions: 216 x 451 x 92 (mm)
- Safety: ETL to UL Standard
Manufacturer : Samlex America
Manufacturer Part No : NTX-3000S-12
UPC : 622988073403
